Scientific Solutions ^® Inc.,

BaseBoard ^® / ISA

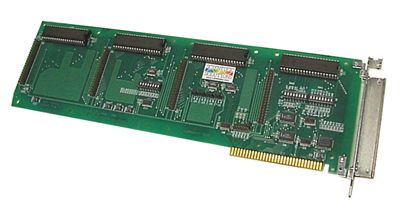

The BaseBoard provides flexible, programmable digital input/output for the ISA computer. 96 lines of TTL compatible I/O are distributed on four 40 pin header connectors across one full size PC board. Optional plug in opto-isolation boards provide both over-voltage protection and buffer/driver capabilities.

This product line consists of a full size ISA card that installs in the computer. The card has four 40 pin header connectors that provide 96 Digital I/O connections. The header connectors accept ribbon cables for direct connection to external equipment, or to screw terminals. Optional Optical Isolation modules can be installed directly on the BaseBoard / ISA to provide 2500v isolation in addition to higher than TTL signal capability.

Use the link to the right for more information about the product including full specifications, part numbers and available accessories.

Product Includes:

BaseBoard / ISA for inside the computer
Win-32 device drivers and LabPac32 library

Features Include:

Full size ISA Interface

4" x 13" (102mm x 330mm)

40 pin header connections for ribbon cables
Only a single ISA slot, all cables exit the card thru a unique bracket assembly
Easy to add Opto-Isolation modules snap right on the BaseBoard / ISA card

Provide over-voltage protection and buffer/driver capabilities
Extends Digital I/O from TTL +5v signals to 30volt signals

100% register level compatible with original 1981 BaseBoard / ISA

Runs your existing BaseBoard software with no modifications required!

BaseBoard / ISA Product


Part Number	Image	Product Overview	More Information
020025		BaseBoard / ISA card Product Includes: BaseBoard / ISA for inside the computer Win-32 device drivers and LabPac32 library For your convenience, Scientific Solutions can pre-configure your BaseBoard / ISA card with Opto-Isolation INPUT or OUTPUT modules if you desire. Features Include: Full Size ISA Interface 40 position PIN header connectors Four connectors total Provide up to 96 Digital I/O Uses ribbon cable connections from the BaseBoard card Unique design uses single ISA slot with special bracket to accommodate the four ribbon cables. Easy to add Opto-Isolation modules to the BaseBoard / ISA card Modules snap right on the card!	Full Description and Specifications Frequently Asked Questions BaseBoard Manual (html) BaseBoard Manual (PDF)

BaseBoard / ISA Accessories


Part Number	Photo	Product Overview	More Information
020027		Opto-Isolation INPUT module Includes module (order internal 50 pin cable separately) Installs inside the BaseBoard / PCI DeskTop unit Optical Isolation for 24 Digital I/O signals Provides 2500v Optical Isolation Provides for control of higher voltage and current signals	Full Description and Specifications
020026		Opto-Isolation OUTPUT module Includes module and internal 50pin ribbon cable Installs inside the BaseBoard / PCI DeskTop unit Optical Isolation for 24 Digital I/O signals Provides 2500v Optical Isolation Provides for control of higher voltage and current signals	Full Description and Specifications
020039		HandShake Polarity Select Module Uses the standard 40pin cable of the BaseBoard For use with the BaseBoard ISA or PCI products Snaps on to BaseBoard 40 pin connector Contains circuitry to adjust polarity of signals Presents signals on another 40 pin connector Easy to change polarity of control signals: STB, ACK Easy to change polarity of status signals: IBF, OBF Can logically combine Port-A & Port-B signals logically create a 16-bit port! Use a single IBF / OBF for Port A or B Use a single STB / ACK for Port A or B	Full Description and Specifications
811973		Screw Terminal - 40 position Provides Convenient Screw Terminals For use with BaseBoard / PCI using 40 pin connections Includes 6 foot 40 pin ribbon cable Not for use with the 50 pin Opto-Isolation connection	Full Description and Specifications
811974		Screw Terminal - 50 position Provides Convenient Screw Terminals For use with BaseBoard / PCI Opto-Isolation modules since they use the 50 pin connection Includes 6 foot 50 pin ribbon cable Not for use with the 40 pin Digital I/O connection	Full Description and Specifications
943265		Cable, 50 pin ribbon, 6 foot 50 pin flat ribbon cable Terminated at each end with a 50 pin header socket	Full Description and Specifications
938605		Cable, 40 pin ribbon, 6 foot 40 pin flat ribbon cable Terminated at each end with a 40 pin header socket	Full Descriptions and Specifications
811898		DOS Device Driver and LabPac for DOS DOS, TSR Driver LabPac function library Callable from all DOS languages	Full Description and Specifications
938197		Windows Device Driver 32-bit kernel mode driver WDM driver supports Win98, 2000, XP Standard LabPac32 DLL function library included	Full Description and Specifications
821012		LabPac32 Software Application Development Toolkit Software Development tools for creating your own application Comes complete with Device Drivers for Scientific Solutions products WDM Driver Supports Win98, 2000, XP LabPac32 DLL as the API Software Developer Example programs Compiled EXE programs Source Code Header files C# Compiler Same compiler used to make examples Open Source compiler C# is an object oriented, well-structured and managed language Easy to create graphical software Includes MicroSoft dotNET Framework Allows you to compile programs to run in Windows

BaseBoard / ISA Accessories - Solid State Relays


Part Number	Photo	Product Overview	More Information
381013		Solid-State Relay Rack, 8 Position, "Standard" Includes 8 Position Relay Rack with 50 pin header connector Relay Rack uses "Standard" size SSR Modules Includes 6 foot, 50 pin ribbon cable Connects to BaseBoard / PCI using 50 pin Digital I/O connection Requires Special connection for BaseBoard / ISA	Full Description and Specifications
381014		Solid-State Relay Rack, 24 Position, "Standard" Includes 24 Position Relay Rack with 50 pin header connector Relay Rack uses "Standard" size SSR Modules Includes 6 foot, 50 pin ribbon cable Connects to BaseBoard / PCI using 50 pin Digital I/O connection Requires Special connection for BaseBoard / ISA	Full Description and Specifications
381015		Solid-State Relay Rack, 24 Position, "Mini" Includes 24 Position Relay Rack with 50 pin header connector Relay Rack uses "Mini" size SSR Modules Includes 6 foot, 50 pin ribbon cable Connects to BaseBoard / PCI using 50 pin Digital I/O connection Requires Special Connection for BaseBoard / ISA	Full Description and Specifications
381006		Solid-State Relay, DC OUTPUT 60V DC, "Standard"	Full Description and Specifications
381010		Solid-State Relay, DC OUTPUT, 60V DC "Mini"	Full Description and Specifications
381017		Solid-State Relay, DC OUTPUT, 200V DC, "Standard"	Full Description and Specifications
381021		Solid-State Relay, DC OUTPUT, 200V DC, "Mini"	Full Description and Specifications
381005		Solid-State Relay, AC OUTPUT, 120V AC, "Standard"	Full Description and Specifications
381009		Solid-State Relay, AC OUTPUT, 120V AC, "Mini"	Full Description and Specifications
381016		Solid-State Relay, AC OUTPUT, 240V AC, "Standard"	Full Description and Specifications
381020		Solid-State Relay, AC OUTPUT, 240V AC, "Mini"	Full Description and Specifications
381008		Solid-State Relay, DC INPUT, 32V DC, "Standard"	Full Description and Specifications
381012		Solid-State Relay, DC INPUT, 32V DC, "Mini"	Full Description and Specifications
381019		Solid-State Relay, DC INPUT, 60V DC, "Standard"	Full Description and Specifications
381023		Solid-State Relay, DC INPUT, 60V DC, "Mini"	Full Description and Specifications
381007		Solid-State Relay, AC INPUT, 120V AC, "Standard"	Full Description and Specifications
381011		Solid-State Relay, AC INPUT, 120V AC, "Mini"	Full Description and Specifications
381018		Solid-State Relay, AC INPUT, 240V AC, "Standard"	Full Description and Specifications
381022		Solid-State Relay, AC INPUT, 240V AC, "Mini"	Full Description and Specifications
